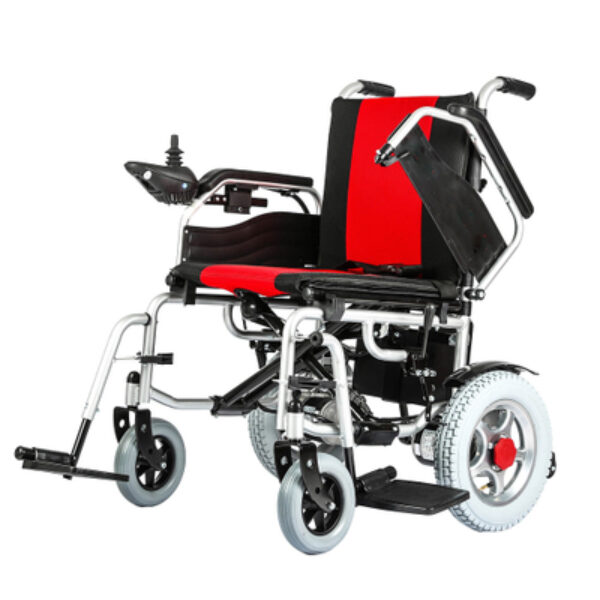

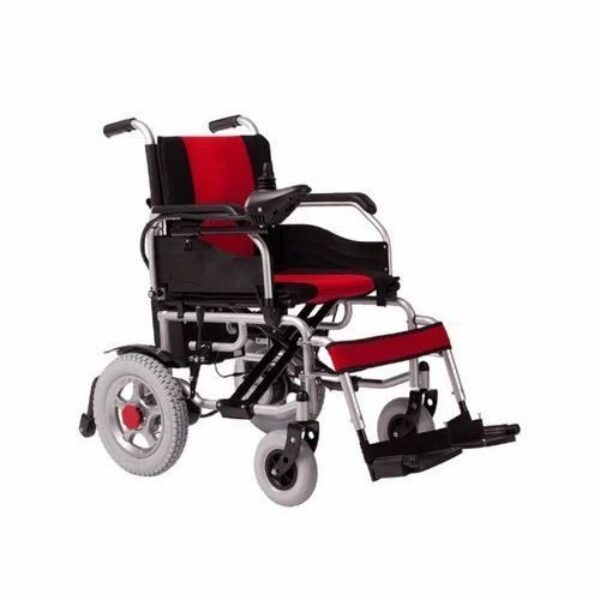

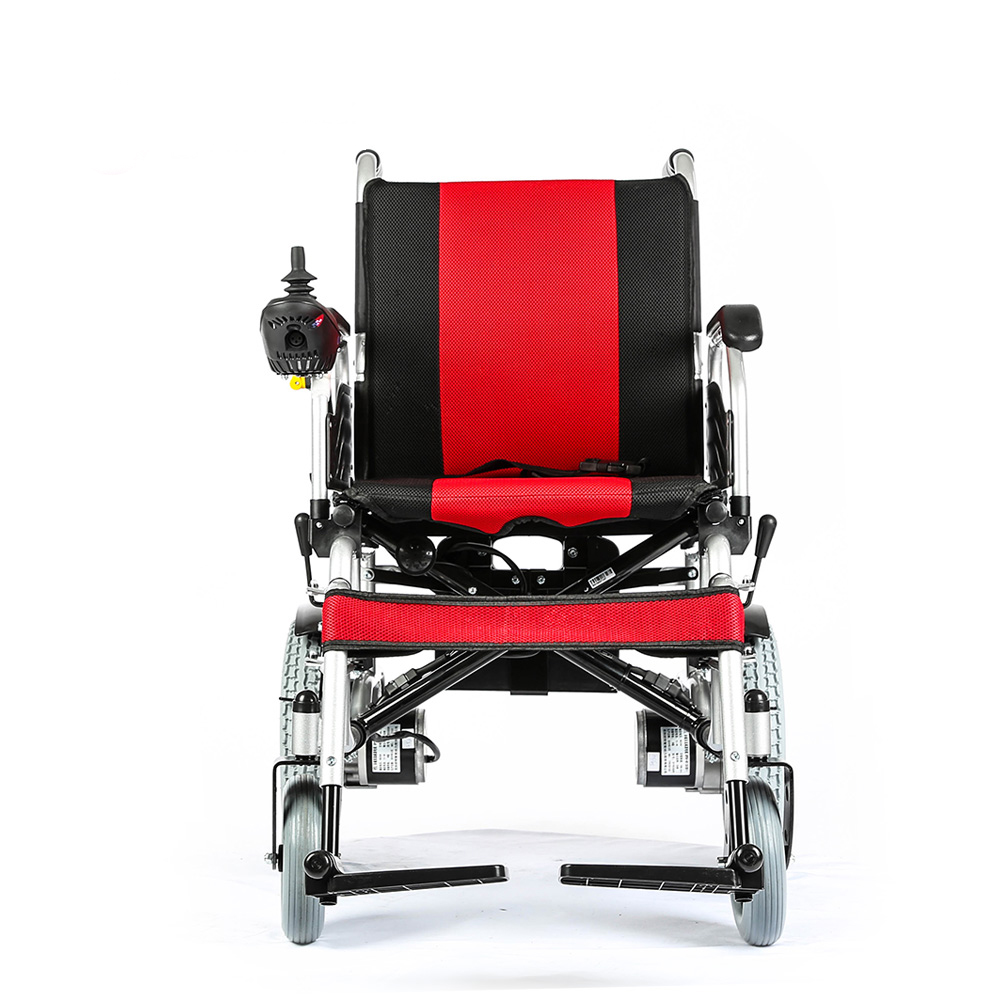

Electric Wheelchair(Small Wheel) Model: DW-WD501E
$1,099.00
The DW-WD501E is a compact, foldable electric wheelchair designed for users seeking mobility and convenience. Below are its key specifications:
Dimensions and Weight:
- Seat Width: 45 cm
- Seat Depth: 44 cm
- Seat Height: 50 cm
- Overall Length: 104 cm
- Overall Width: 64 cm
- Overall Height: 91-106 cm
- Net Weight (Without Battery): 24.8 kg
- Gross Weight: 29 kg
- Weight Capacity: Up to 120 kg
- Folded Size: 60 cm x 34 cm x 74 cm
Motors and Performance:
- Motors: Dual 200W DC motors
- Battery: 24V 10Ah lithium battery
- Driving Range: Approximately 17 km with one battery; up to 51 km with three batteries
- Maximum Speed: 8.5 km/h
- Maximum Grade Ability: 15°
Wheels:
- Front Wheels: 8-inch solid PU tires
- Rear Wheels: 12-inch pneumatic tires
Frame and Design:
- Frame Material: Aluminum alloy for lightweight durability
- Foldability: Efficient folding system for easy storage and transport
- Armrests and Footrests: Flip-up armrests; adjustable and detachable footrests
- Footplate: Flip-up design for convenient access
Additional Features:
- Controller: Joystick can be mounted on either the left or right armrest
- Braking System: Electromagnetic brakes for enhanced safety
- Battery Indicator: Provides real-time battery status
- Lighting: Equipped with front and rear LED lights
These features make the DW-WD501E a practical choice for individuals seeking a reliable and portable electric wheelchair.
